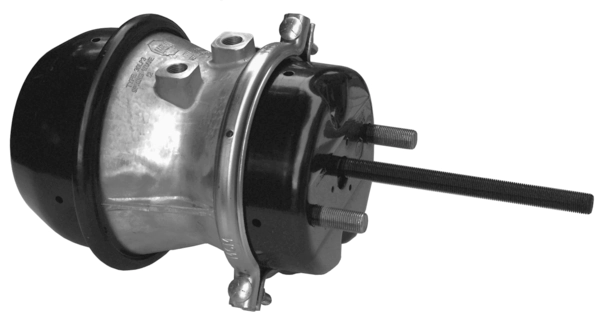

PULMON SPRING BRAKE ABP 24/30 121mm M16
18000-ABP-313
| DETALLES |
| Marca | Abp |
| Código red. | 18313ABP |
| Observaciones | WABCO: 9253713000; REEMPLAZADO POR: 9253760000; 2001131; TYPE:T2430DD; STROKE:64/64; BOLT CENTRE:120.7; BOLTTHREAD:M16x1.5; PUSH ROD THREAD:M16×1.5; PORT THREAD:M16×1.5/Z-3/8; PUSH ROD LENGTH:285mm; |
|
peso
|
8.5 kg
|
|
Dimensiones
|
25.46 cm alto x
25.46 cm ancho x
25.46 cm largo
|
|
